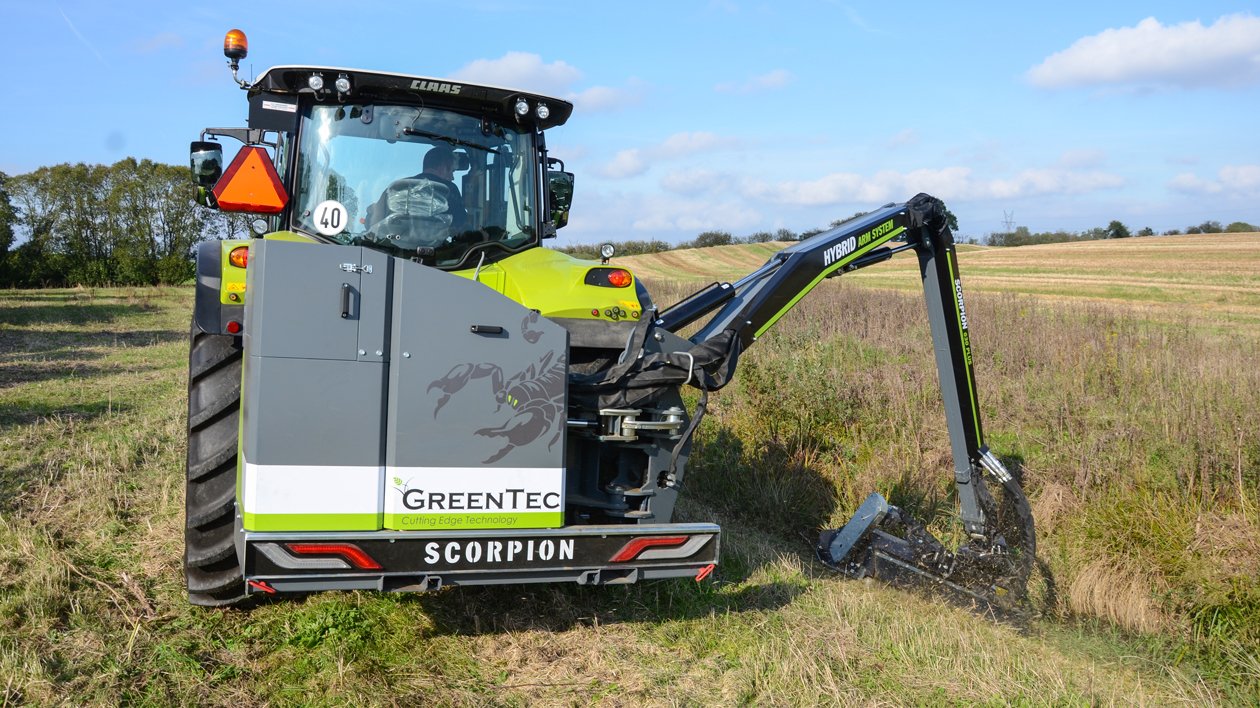

Scorpion 530 & 630 Rear Mounted

Our Scorpion boom mowers have many innovative features that provide environmentally and economically benefits for the user while increasing the driving experience and road safeness.

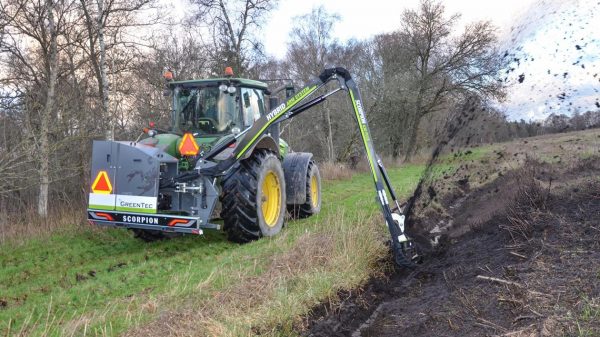

A large selection of tools can be attached to the Scorpion boom mowers for roadside maintenance and hedge trimming. The wide range of attachment tools makes the Scorpion a popular choice throughout the entire year.

The Scorpion reach mowers are divided into 3 series which vary in reach, minimum vehicle size, equipment and available attachment tools.

The Scorpion 6-series consists of 4 different models: 530 S, 530 PLUS, 630 S and 630 PLUS. All models are rear mounted.

The Scorpion reach mowers are available in two variants, STANDARD and PLUS. The difference between them is mainly the hydraulic performance and the included equipment. For instance, the PLUS models have Rotor Flex and Auto Flex as standard equipment.

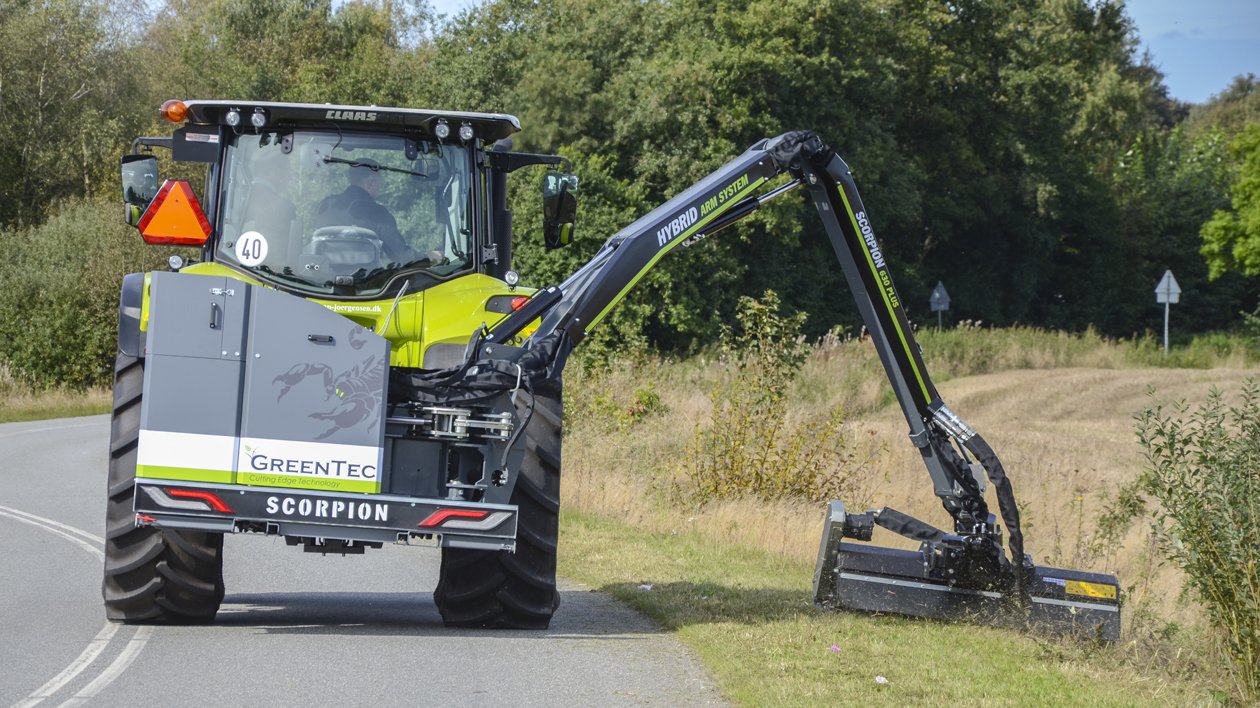

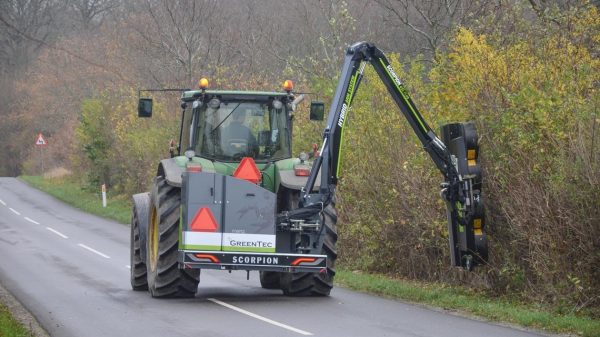

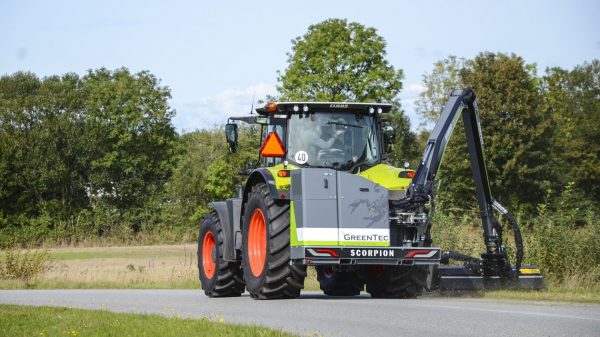

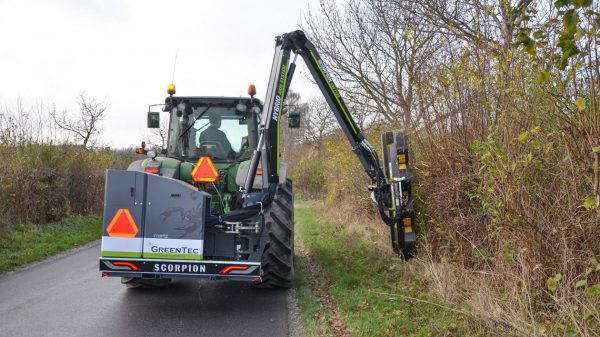

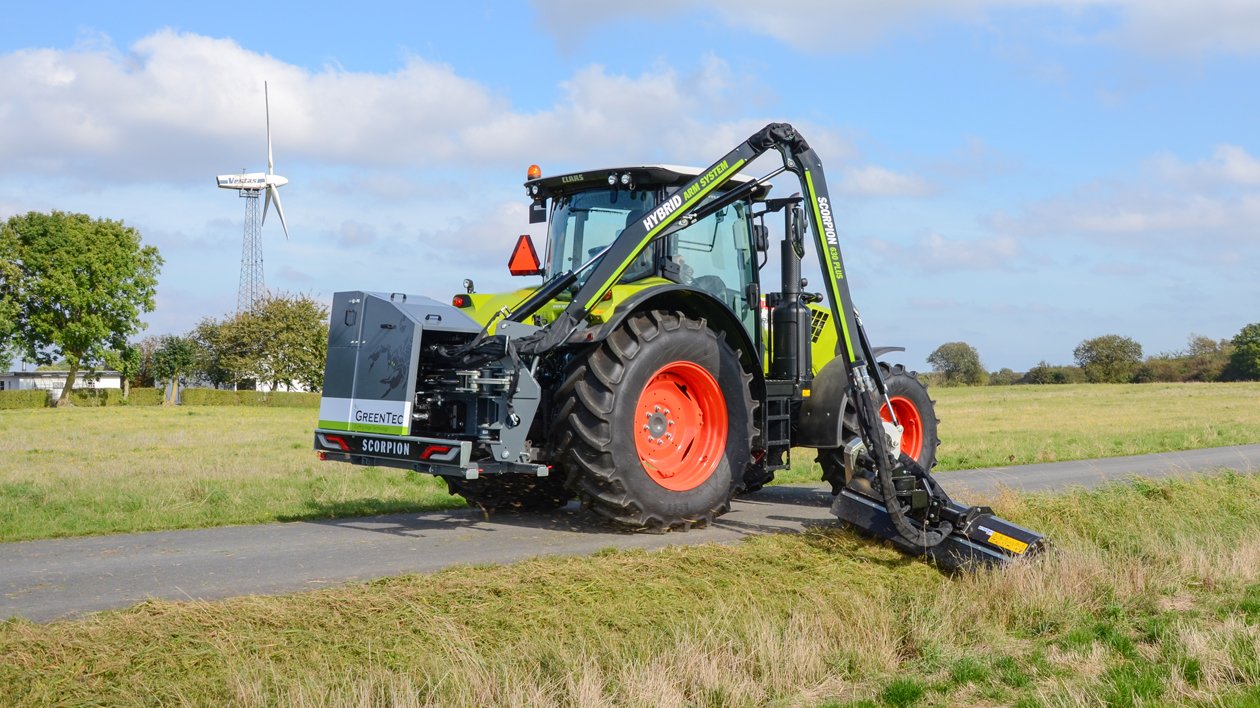

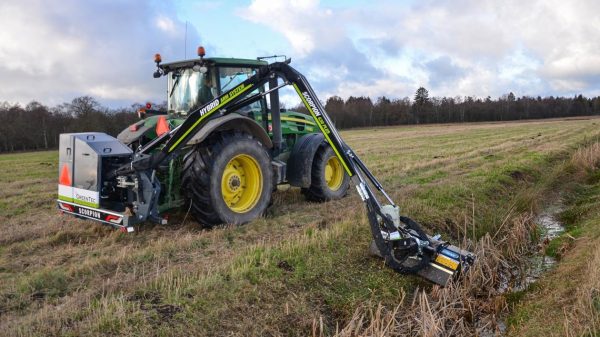

The boom mowers have horizontal reaches of 5.3 and 6.3 m (17'5" and 20'8"). It enables you to mow grass and shrubs on steep slopes by attaching a flail mower to the arm. You can also mount hedge trimmers and limb saws on the boom arm and reach high branches by extending the arm up to 5.1 or 6.1 m (16'9" or 20').

The Scorpion 6-series is designed for medium-sized tractors with a weight of at least 4000 kg (8,819 lb).

The patented 4-point mounting system connects the tractor and the boom mower and gives 100% stability. It is also easy to mount. The Hybrid Arm System provides great flexibility and increases the work capacity and environment. The Danfoss hydraulic system on the 6 PLUS models ensures reliability and high output. Furthermore, the joystick is easy to operate.



Product Highlights

  • Hybrid Arm System: Control the arm with or without parallel motion
  • Strenx Steel = 25% weight reduction and 50% stronger construction
  • 155° hydraulic turn of the arm with Power Control
  • Auto Height Control ensures that the cutting head floats above the terrain (Optional equipment)

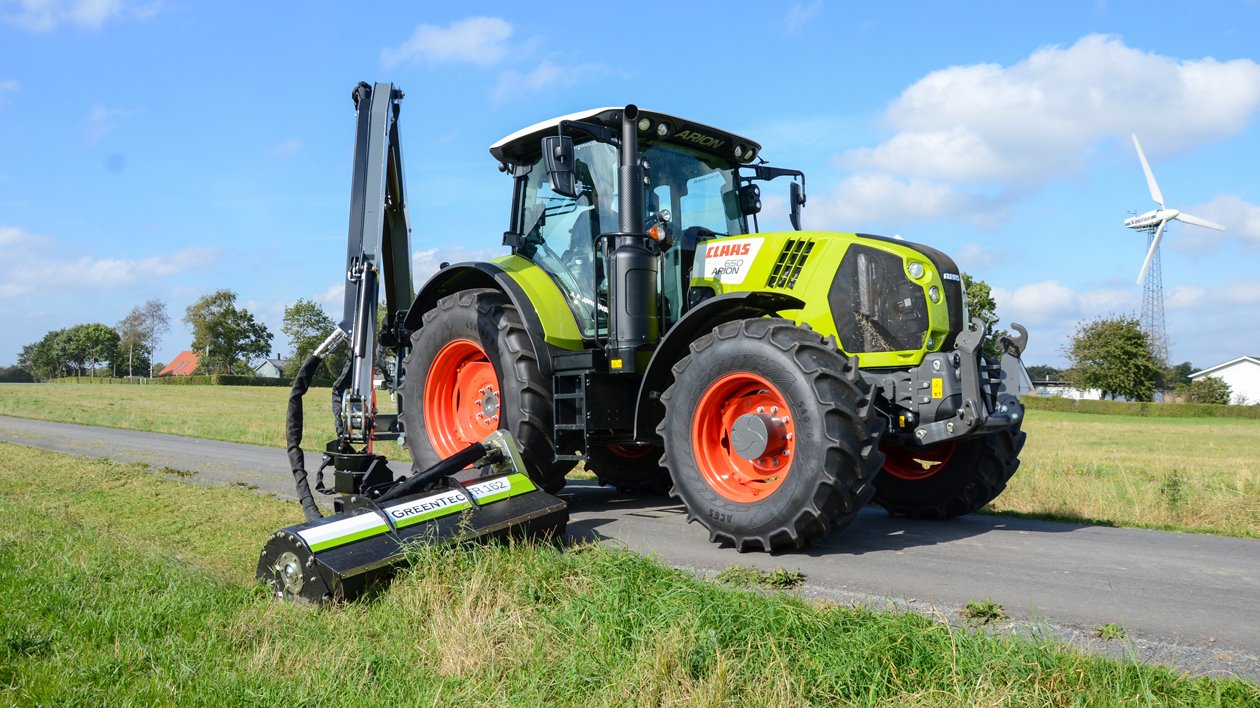

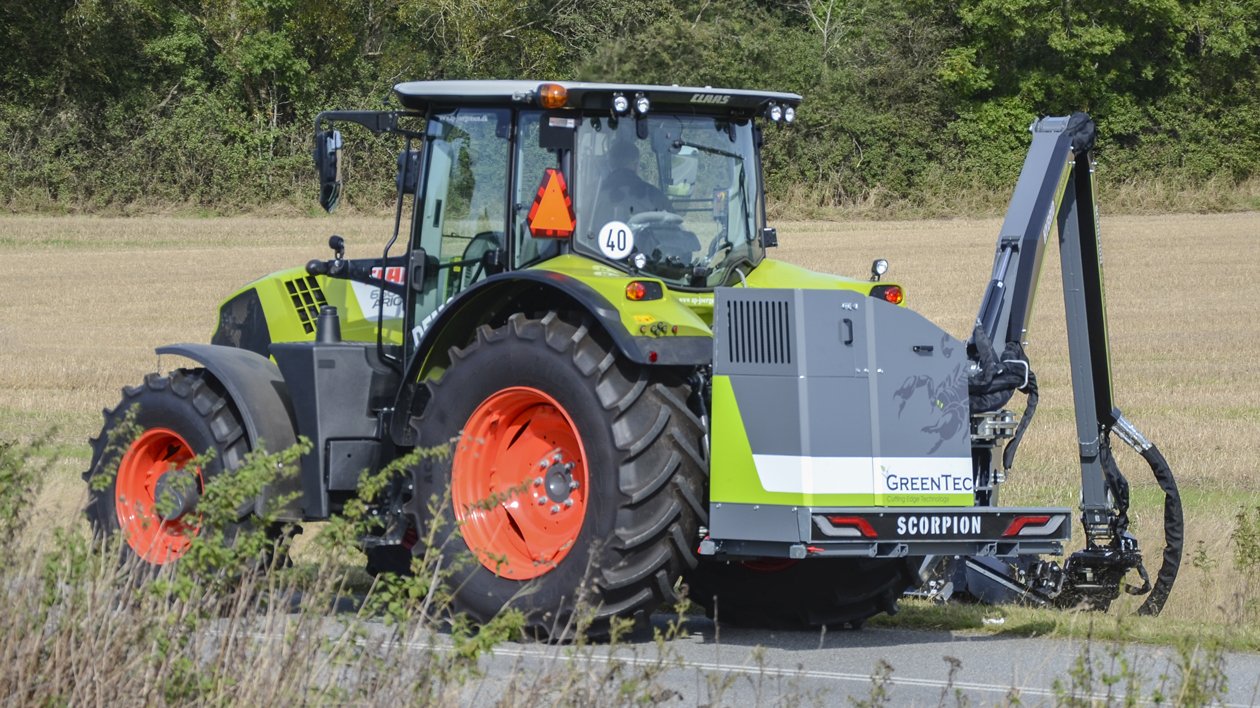

  • Fast and easy mounting with the 4-point system
  • Rotor Flex gives the driver a better view to the attachment tool (Optional equipment on the S models)

Contact us for more information and price.

Specifications

TECHNICAL DATA 530-6 S 630-6 S
Horizontal reach 5.3 m
(17’5″)
6.3 m
(20’8″)
Vertical reach 5.1 m
(16’9″)
6.1 m
(20′)
Transport width 2.2 m
(7’3″)
2.2 m
(7’3″)
Pump 56 ccm gear pump, cast iron
Hydraulic system 115 l/min @ 230 bar
(30.38 gpm @ 3336 psi)
Weight without tools 1,235 kg
(2,723 lb)
1,270 kg
(2,800 lb)
Minimum size of tractor 4,000 kg
(8,819 lb)
5,000 kg
(11,023 lb)
Minimum size of tractor 1,500 kg
(3,307 lb)
2,000 kg
(4,409 lb)



TECHNICAL DATA 530-6 PLUS 630-6 PLUS
Horizontal reach 5.3 m
(17’5″)
6.3 m
(20’8″)
Vertical reach 5.1 m
(16’9″)
6.1 m
(20′)
Transport width 2.2 m
(7’3″)
2.2 m
(7’3″)
Pump Danfoss 60 ccm piston pump
Hydraulic system 125 l/min @ 315 bar
(33.02 gpm @ 4569 psi)
Weight without tools 1,370 kg
(3,020 lb)
1,395 kg
(3,07 lb)
Minimum size of tractor 4,000 kg
(8,819 lb)
5,000 kg
(11,023 lb)
Minimum size of tractor 1,650 kg
(3,638 lb)
2,200 kg
(4,850 lb)

Equipment Overview

EQUIPMENT 6 S 6 PLUS
Hybrid Arm System with dual function Standard equipment Standard equipment
Strenx 700 steel construction Standard equipment Standard equipment
155° hydraulic turn of the arm with power control Standard equipment Standard equipment
Rotor Flex, double pivot joint
(270° turn of cutting head and 180° cutting angle)
Optional equipment Standard equipment
Auto Flex, automatic vertical positioning Optional equipment Standard equipment
Danfoss proportional valve PVG 32/16 Standard equipment Standard equipment
Danfoss joystick with 4 proportional functions Standard equipment Standard equipment
2 oil flows: 85 and 50 l /min (22.45 and 13.21 gpm) Standard equipment Standard equipment
Hydraulic float of arm and cutting angle Standard equipment Standard equipment
Oil cooler Standard equipment Standard equipment
Air Stream Control (Effective oil cooling) Standard equipment Standard equipment
220 l (58.12 gallons) oil tank capacity Standard equipment Standard equipment
4-point mounting for cat. 2 or 3 Standard equipment Standard equipment
PTO 450-850 rpm (Rear mounted) Standard equipment
PTO 450-750 rpm (Rear mounted) Standard equipment
Transport safety
LED lights Standard equipment Standard equipment
Auto Height Control (For verge mowing)* Optional equipment Optional equipment
Quick release, hydraulic Optional equipment Optional equipment
Quick release. mechanical Optional equipment Optional equipment
Hose kit, 4 pieces Optional equipment Optional equipment
K80 ball hitch for 4-point mounting** Optional equipment Optional equipment
430 kg (948 lb) counterweights Optional equipment Optional equipment
Leaf Blower LG attached to boom mower Optional equipment Optional equipment
Bio oil Optional equipment Optional equipment

* Cannot be retrofitted
** Requires K80 on the tractor at top bar height

Standard equipment = Standard equipment

Optional equipment = Optional equipment
