Fransgard Swath Wilters
Product Information
Since its introduction in Sweden in 2003, Fransgård’s popular swath wilters have been continuously developed and adapted to the needs of customers, while more and more markets have become aware of the machine and its qualities, which has made Fransgård the market leader in this machine.

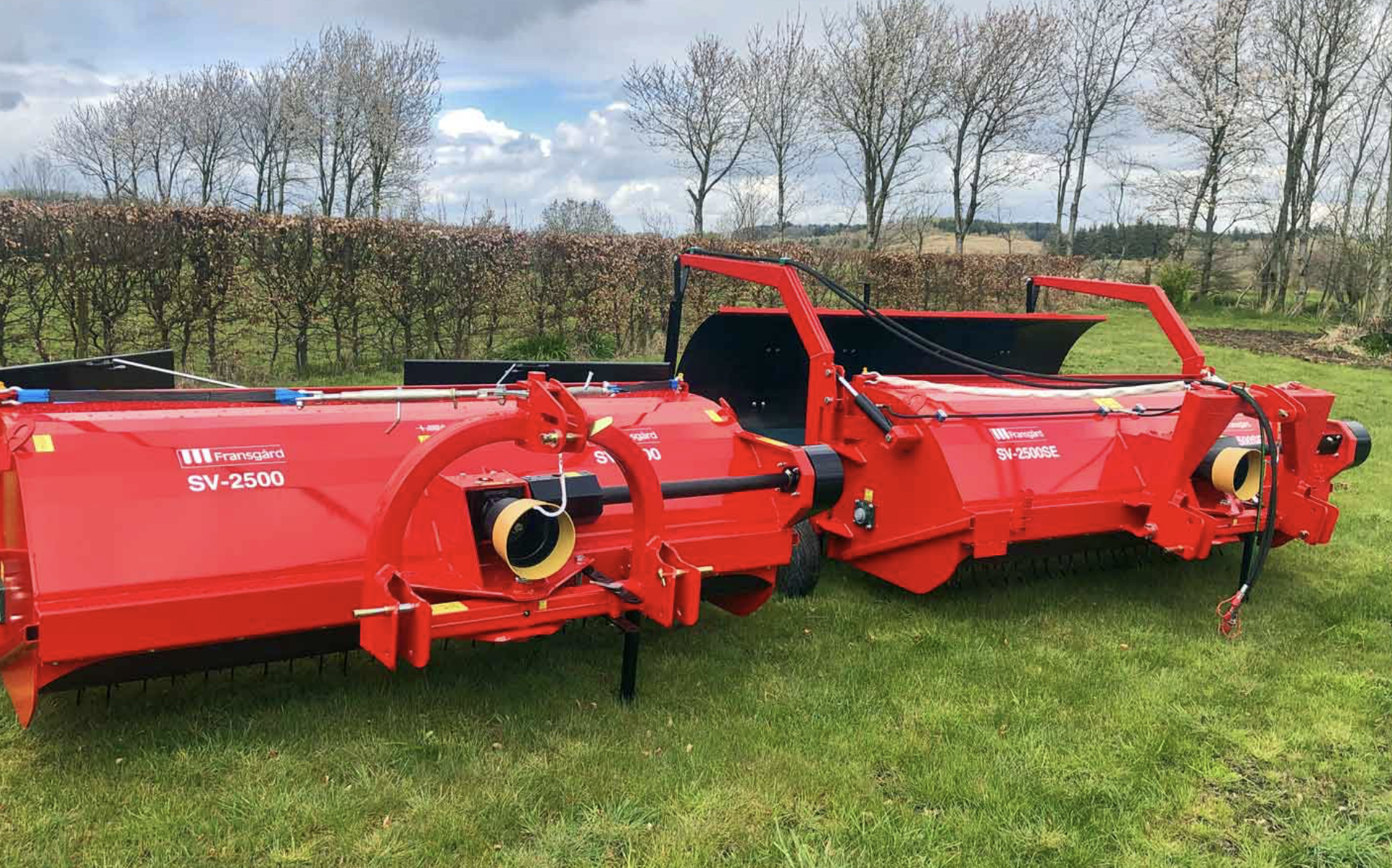

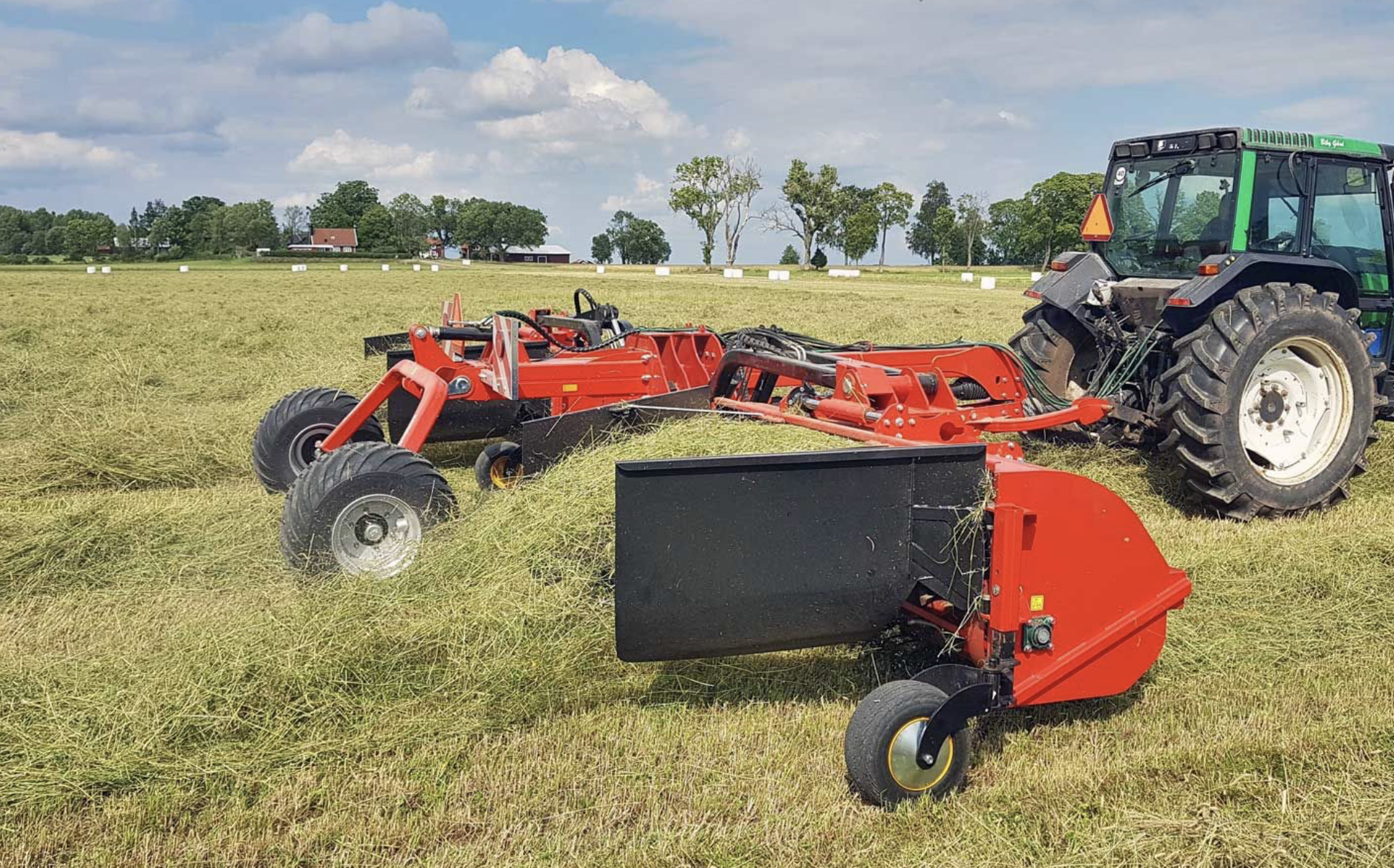

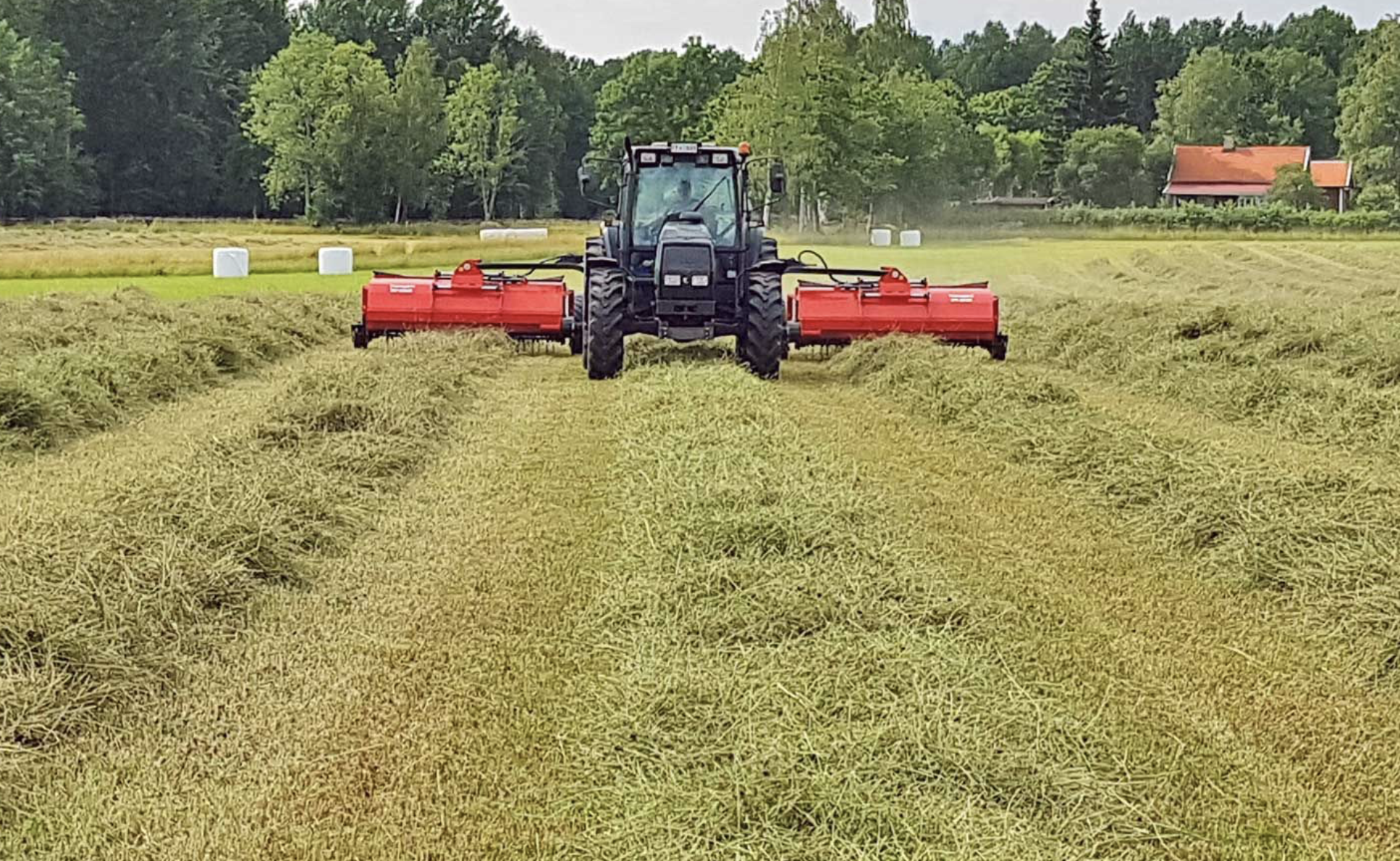

Fransgård’s popular SV-2500 Swath Wilters are used as the basic construction in the dual-equipped SV-8300 / SV-8300-CD Swath Wilters. It is built in a strong construction with hydraulic folding, which makes it both efficient and flexible at the same time. The machine is a towed model designed to process 2 swaths simultaneously. Therefore, it expands the model range of Swath Wilters, making Fransgård the market leader in these machines.

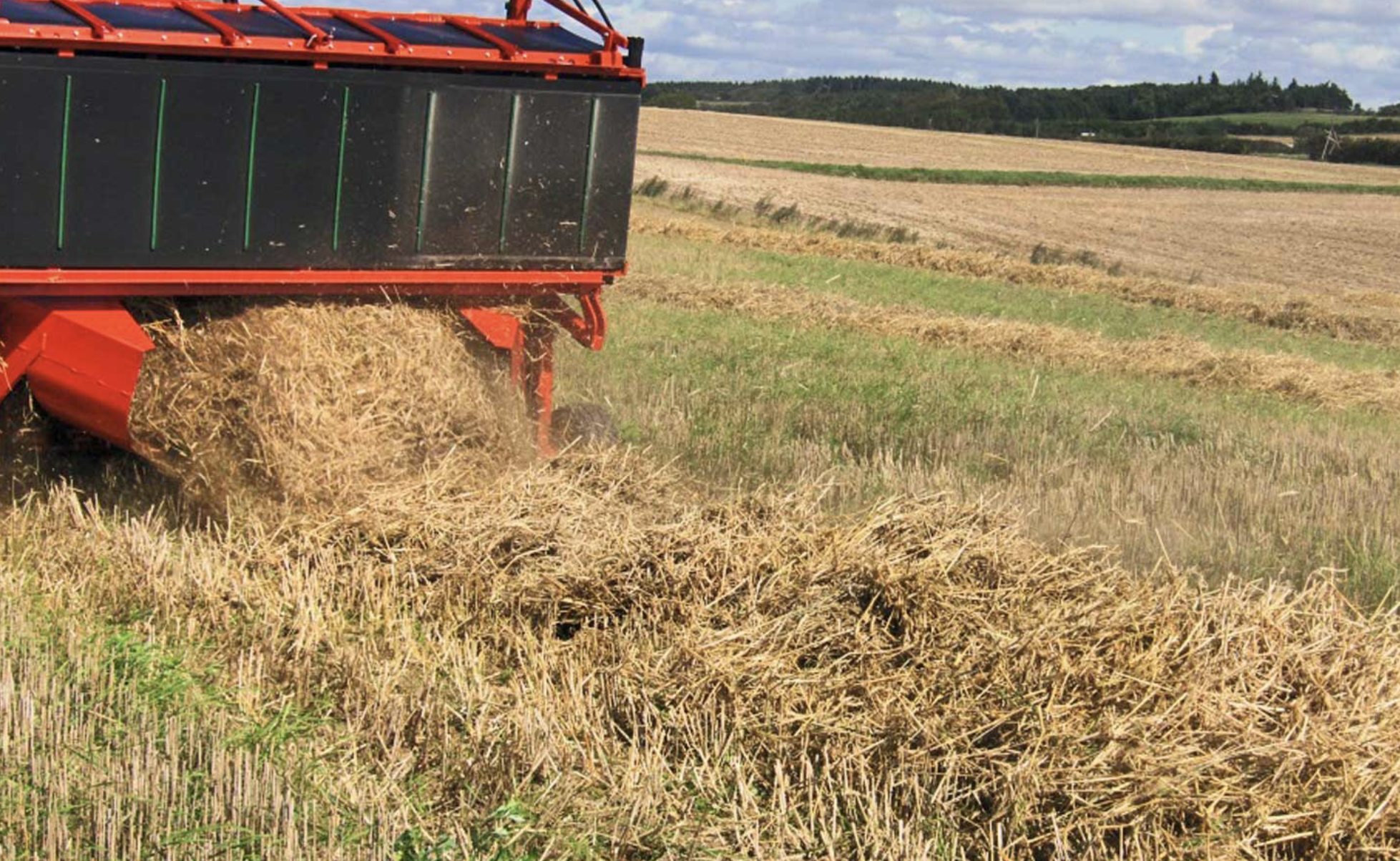

The machine can be used with great advantage in grass, hay and straw, and leaves a high airy swath without impurities such as soil and stones.
In short: BETTER CROP QUALITY

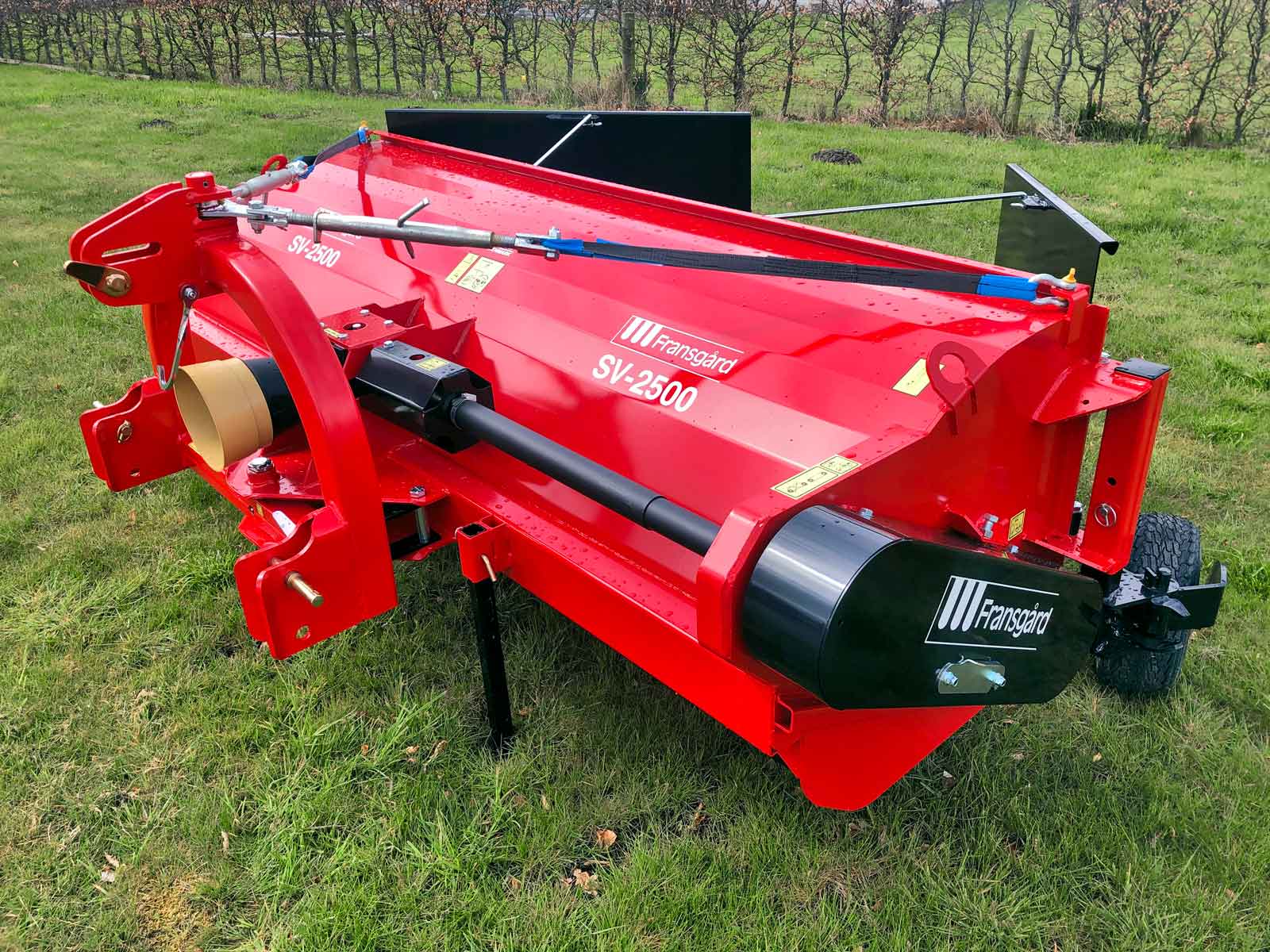

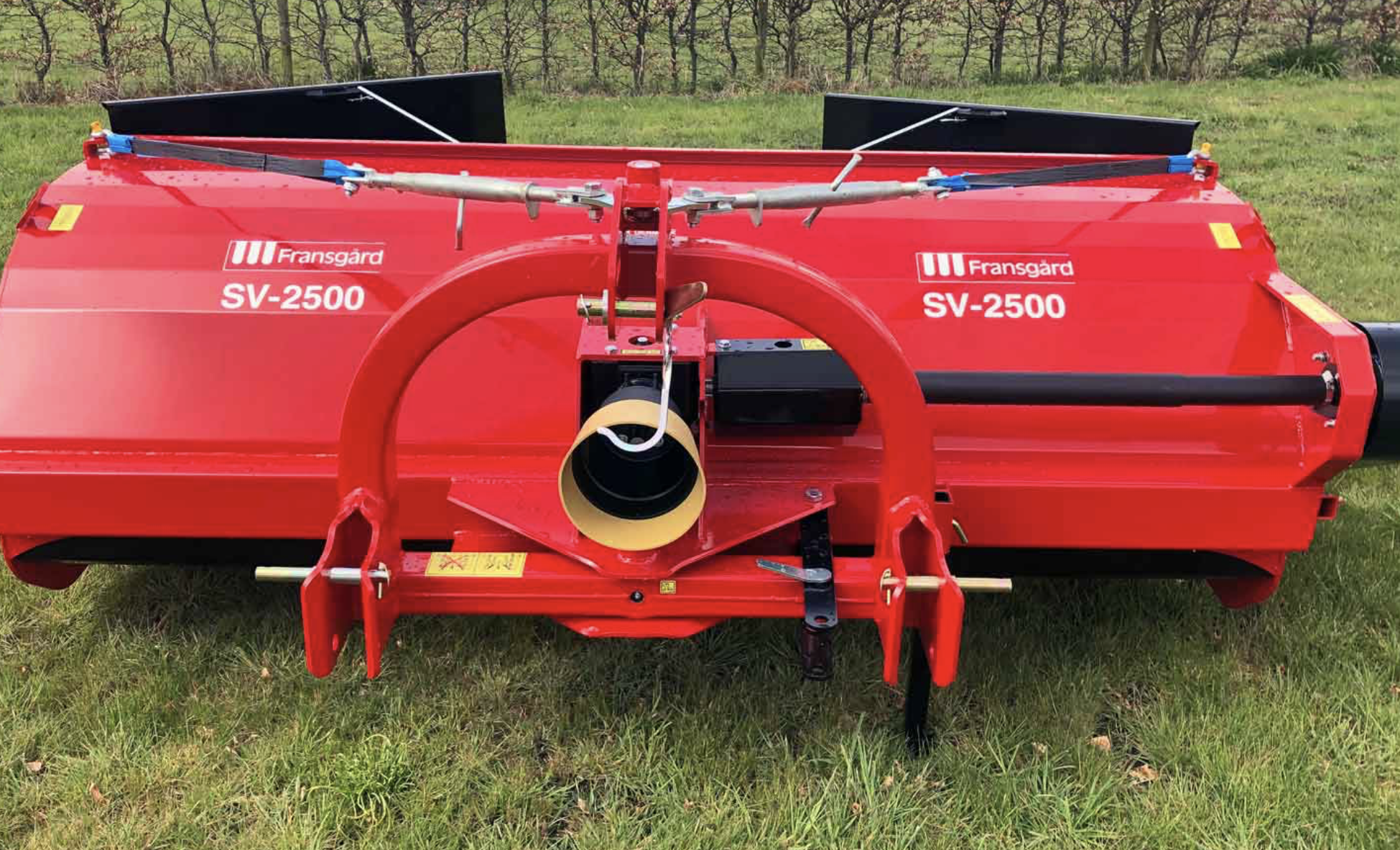

SV-2500 Technical Data:
| Model: | SV-2500 | SV-2500CD |
|---|---|---|
| Working width | 250 cm | 250 cm |
| Transport width | 300 cm | 300 cm |
| Number of rotors | 1 | 1 |
| Rotor diameter | 80 cm | 80 cm |
| Rotor speed at 540 rpm | 485 rpm. | 485 rpm. |
| Number of rake springs | 72 | 72 |
| Number of wheels | 2 | 2 |
| Wheel size | 16.5×6.5-8/6 ply | 16.5×6.5-8/6 ply |
| Hydraulic connectors | – | – |
| 3-point suspension | Cat II | Cat II |
| PTO connector rpm | 400-540 | 400-540 |
| Power requirement kW/HP | 60 / 80 | 60 / 80 |
| Working speed km/h | 8-20 | 8-20 |
| Weight | 910 kg. | 910 kg. |

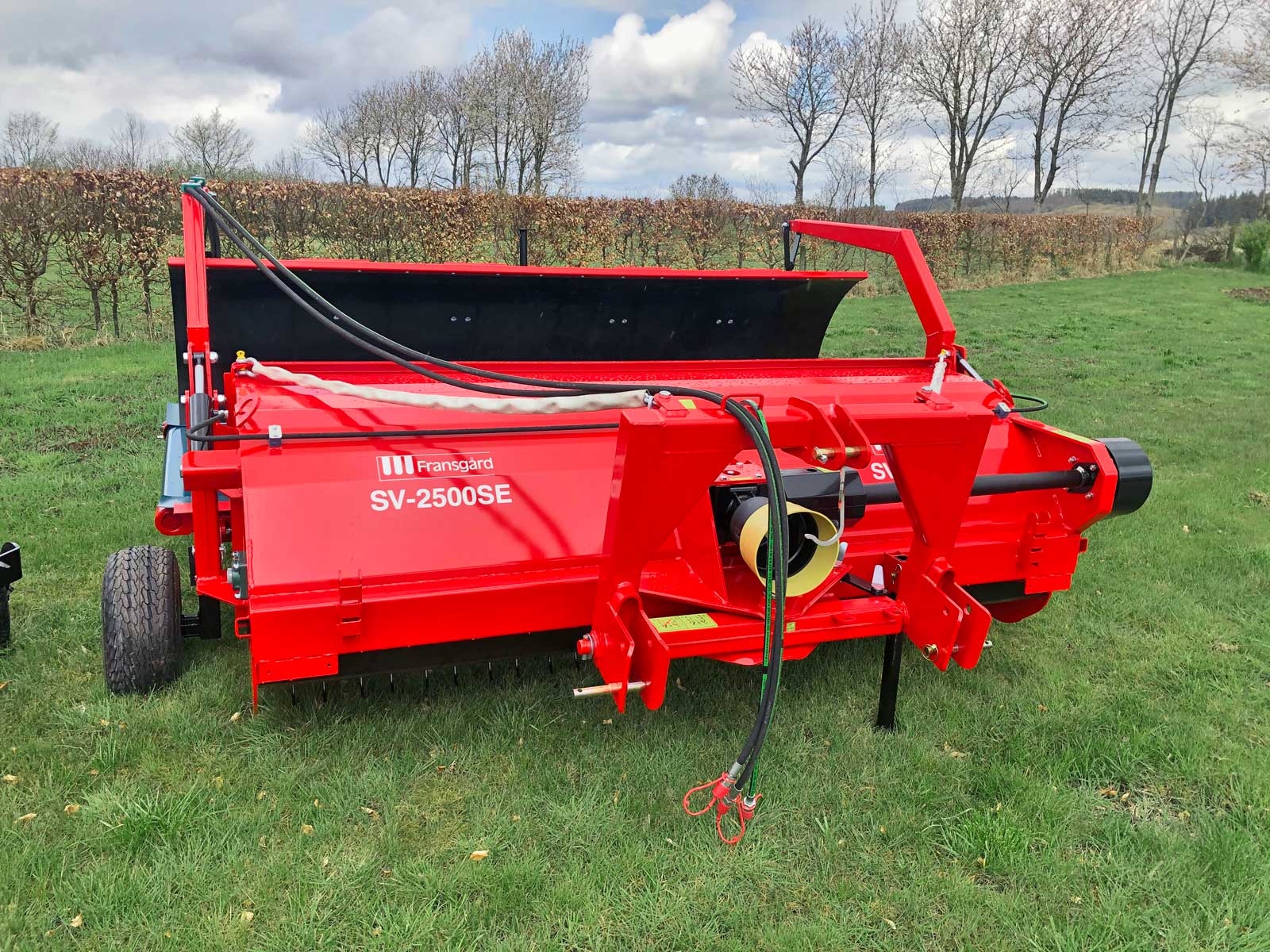

SV-2500SE & SV-2500SE-CD Technical Data:
| Model: | SV-2500SE | SV-2500SE-CD |
|---|---|---|
| Working width | 250 cm | 250 cm |
| Transport width | 300 cm | 300 cm |
| Number of rotors | 1 | 1 |
| Rotor diameter | 80 cm | 80 cm |
| Rotor speed at 540 rpm | 485 rpm. | 485 rpm. |
| Number of rake springs | 72 | 72 |
| Number of wheels | 2 | 2 |
| Wheel size | 18.5 x 8 / 6 ply | 18.5 x 8 / 6 ply |
| Hydraulic connectors | 1 double + 1 single | 1 double + 1 single |
| 3-point suspension | Cat II | Cat II |
| PTO connector rpm | 400-540 | 400-540 |
| Power requirement kW/HP | 60 / 80 | 60 / 80 |
| Working speed km/h | 8-15 | 8-15 |
| Weight | 910 kg | 910 kg |

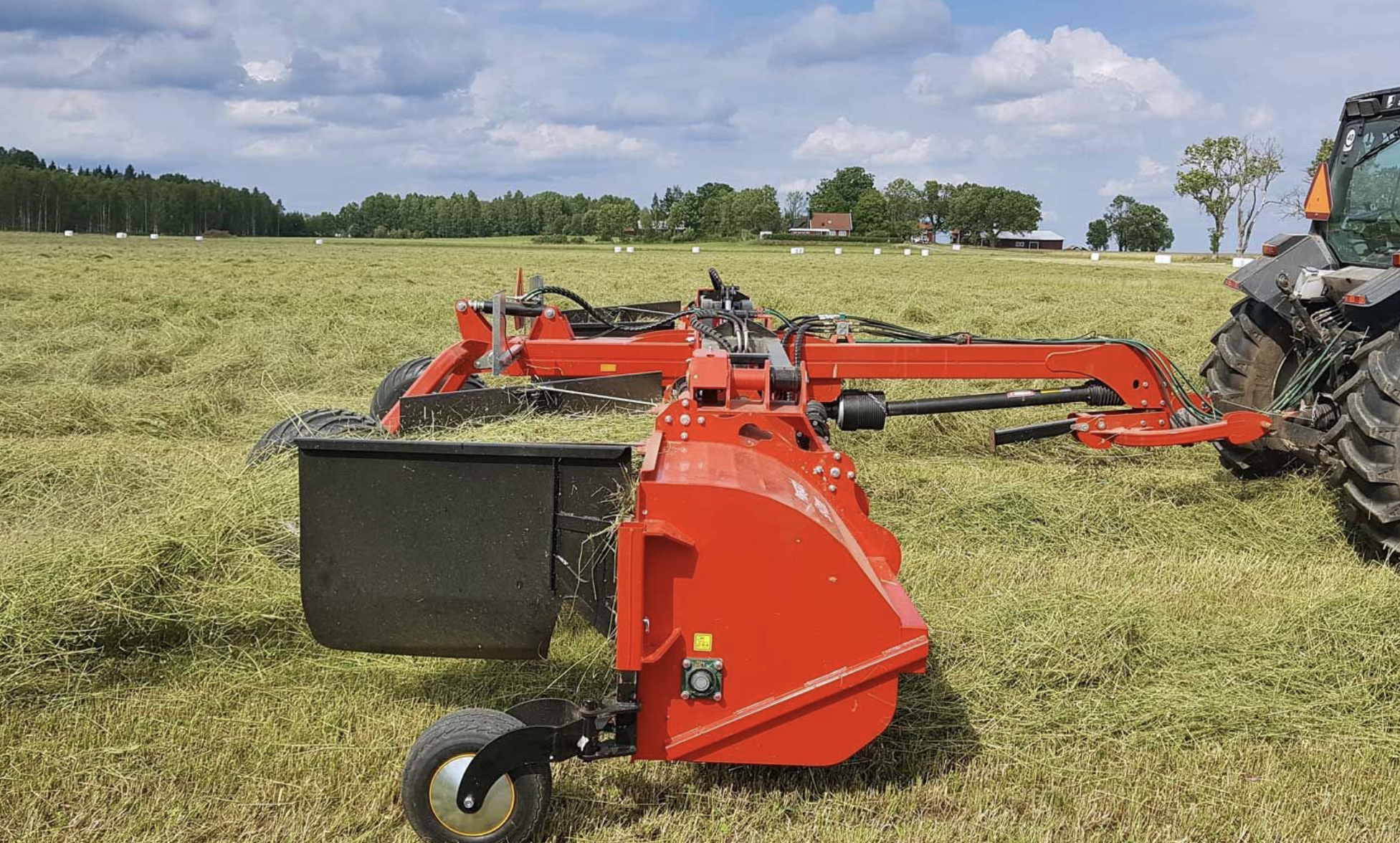

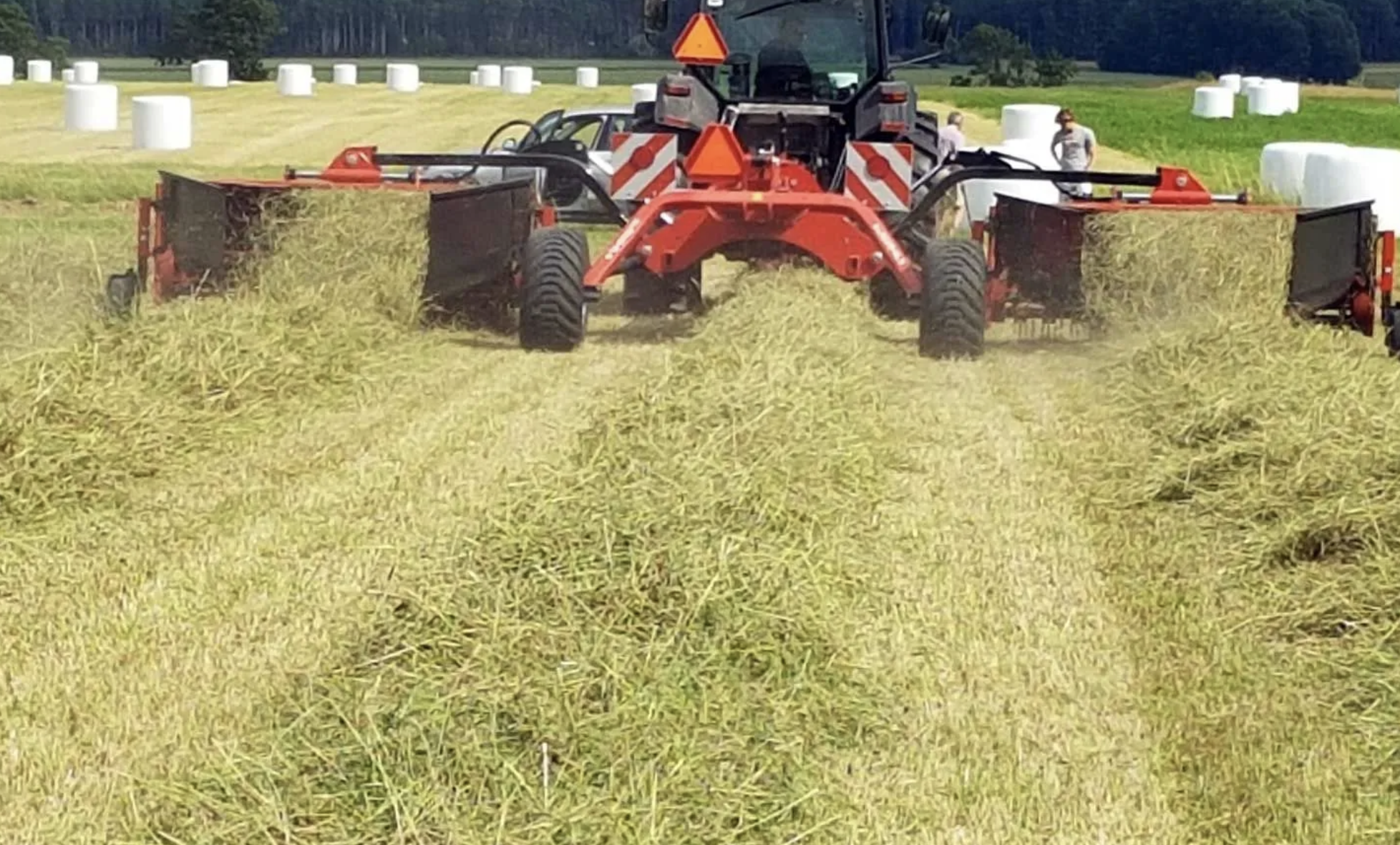

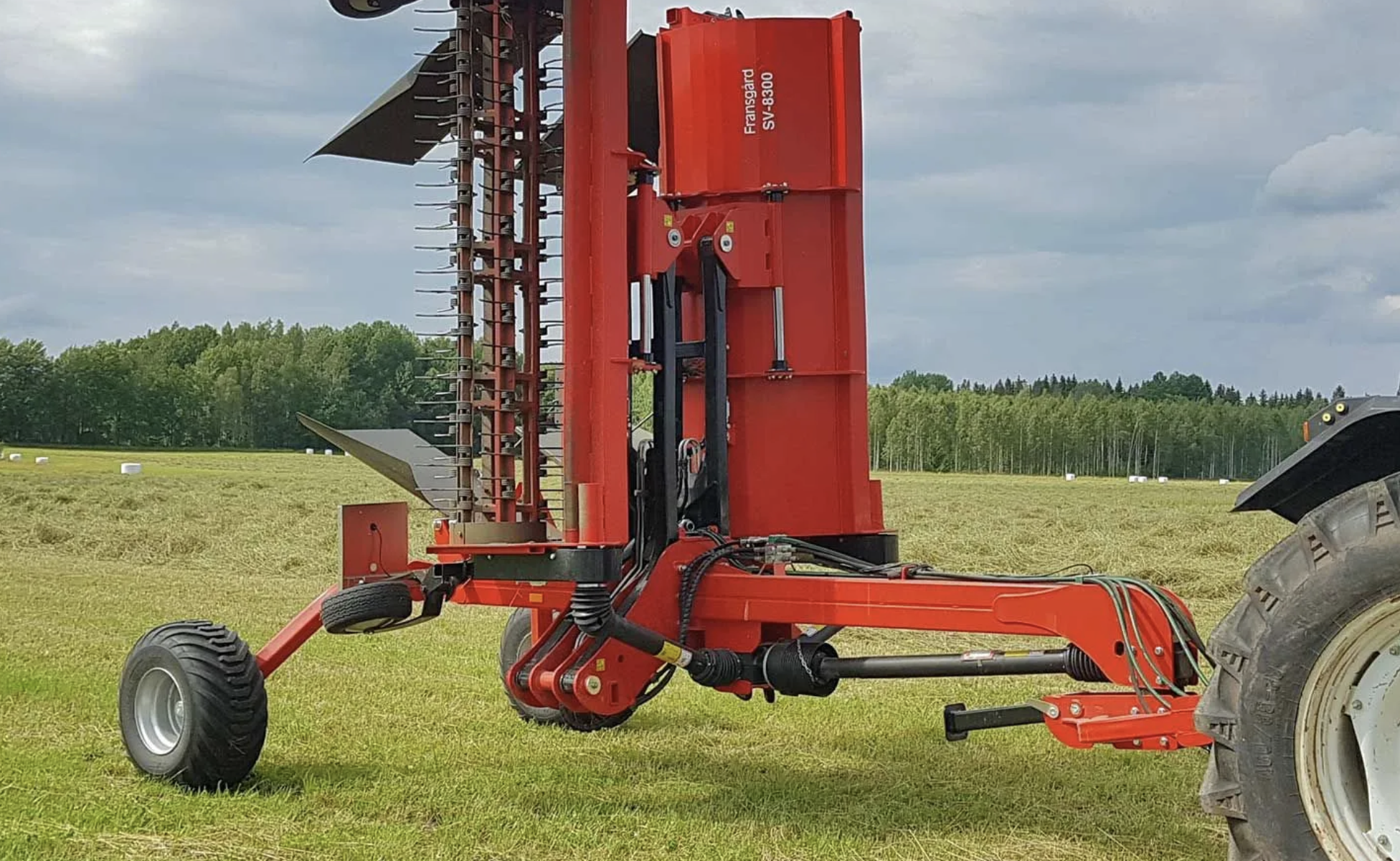

SV-8300 Swath Wilter Technical Data:
| Model: | SV-8300 | SV-8300-CD |
|---|---|---|
| Working width | 760 – 830 cm | 760 – 830 cm |
| Transport width | 300 cm | 300 cm |
| Transport height | 400 cm | 400 cm |
| Transport length | 540 cm | 540 cm |
| Number of rotors | 2 | 2 |
| Rotor diameter | 80 cm | 80 cm |
| Rotor speed at 540 rpm | 485 rpm. | 485 rpm. |
| Number of rake springs | 144 | 144 |
| Number of wheels on the rotor | 4 | 4 |
| Number of transport wheels | 2 | 2 |
| Hydraulic connectors | 3 double | 3 double |
| PTO connector rpm | 400 – 540 | 400 – 540 |
| Power requirement kW/HP | Min. 40 kW | Min. 40 kW |
| Working speed km/h | 10-22 | 10-22 |
| Weight | 2860 kg | 2860 kg |
| Lift bracket | KAT II/III | KAT II/III |
Please contact the PJM Agri Ltd team to enquire and for more information
